Pallet Rack Accessories

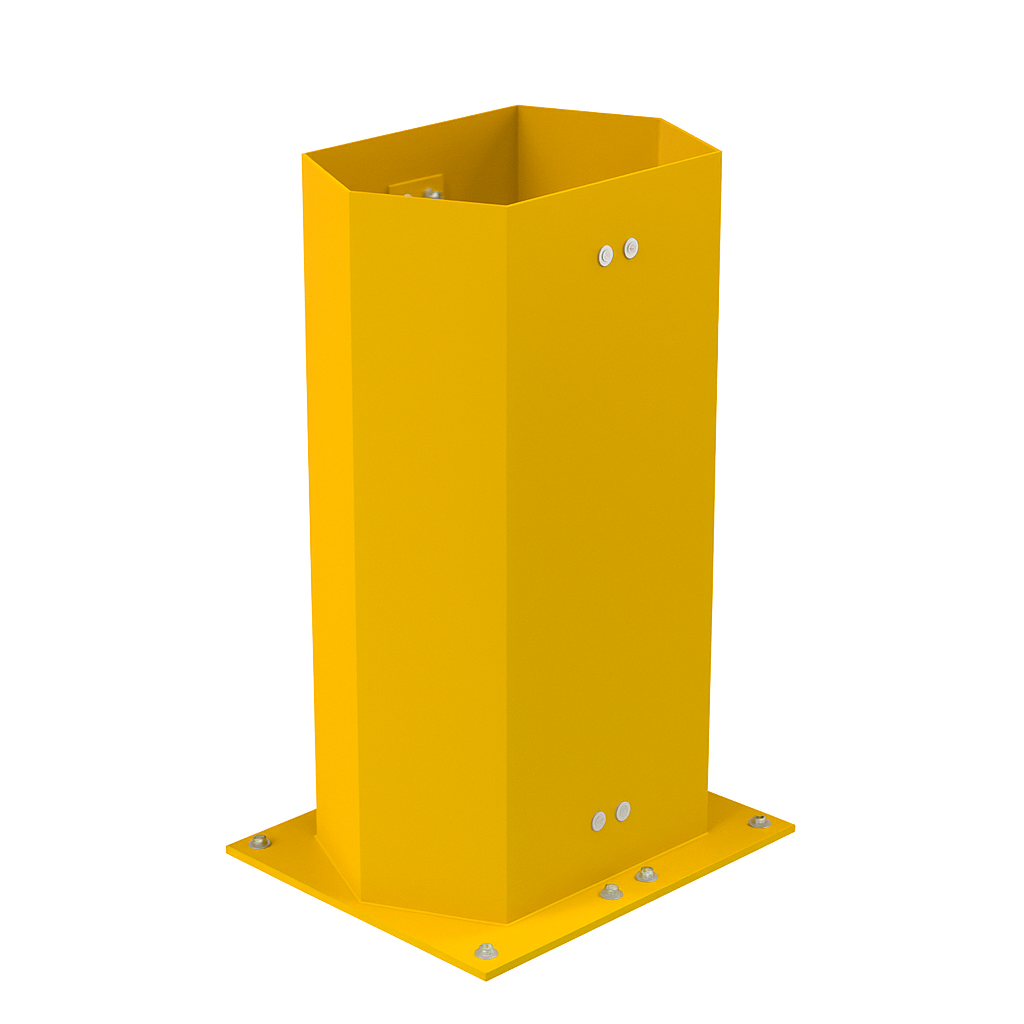

Post Protector

Post Protector

Post protector is one of the pallet rack accessories are designed to protect the rack uprights from being hit by forklift traffic, or pallets that are stored in the rack bays. We offer sizes to fit around any rack upright width. Pallet rack post protection is a vital component to keeping your warehouse safe. Post protectors have enlarged foot plates at the bottom with 4 pre-drilled holes for concrete anchor bolts. They are placed in front of upright columns and help reduce damage caused by forklifts. Post protectors are a much more affordable option than replacing the whole rack system once it’s damaged.


Row Spacer

Row Spacer is one of the pallet rack accessories you need for keep consistent spacing between back to back sections of pallet racks by using row spacers, which bolt into the punched sides of adjacent frames. They keep rows consistently spaced, provide stability to pallet racks and increase efficiency across your warehouse environment. The row spacer is made of galvanized steel construction and resists rust and corrosion. Two row spacers required for 2 upright frames. Taller upright may need additional row spacer. It comes with hardware.

Row Spacer

Pallet Racking Aisle Guards

Pallet Racking Aisle Guards

Aisle Guards is one of the pallet rack accessories you need for protect your rack from forklift damaged. End of aisle rack protectors are anchored at the end of pallet rack rows protecting the end of a pallet rack aisle from forklift damage. The end of rows are particularly susceptible to warehouse material handling vehicle accidents due to high traffic and increased speeds during the work day. United Rack Solutions offer both heavy duty and standard duty options depending on your needs and budget. Which are quite useful in warehouses where every inch counts. Find the exact ones you need for your warehouse.

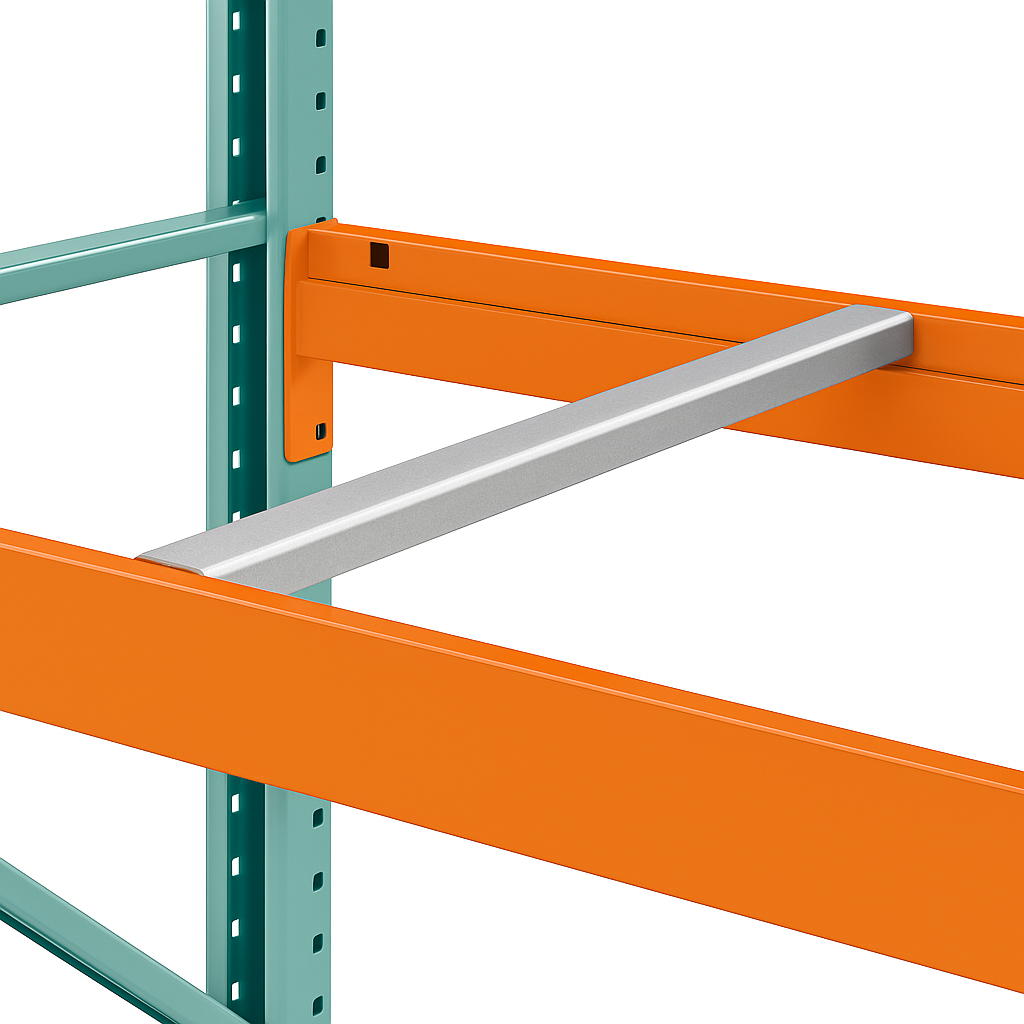

Pallet Support

Pallet supports bars are one of the pallet rack assessories designed to connect over the pallet rack beams of a pallet rack system to support the bottom of load and reinforce the system as a whole. They can be either flanged or waterfall style. It is typically tek screwed in the step of the beam to hold it in place. Allows for extra support for standard pallet. It takes two pallet supports per pallet position.

Pallet Support

Pallet rack beam drop pin

Pallet Rack Beam Drop Pin

This safety clip universal drop pin replaces old or missing pins in many styles of pallet racking. When ordering used pallet racks, order safety pins to secure each beam.

  • Universal fit.
  • Easy to install.
  • Rust and corrosion resistant zinc plated.
  • Low cost replacement.

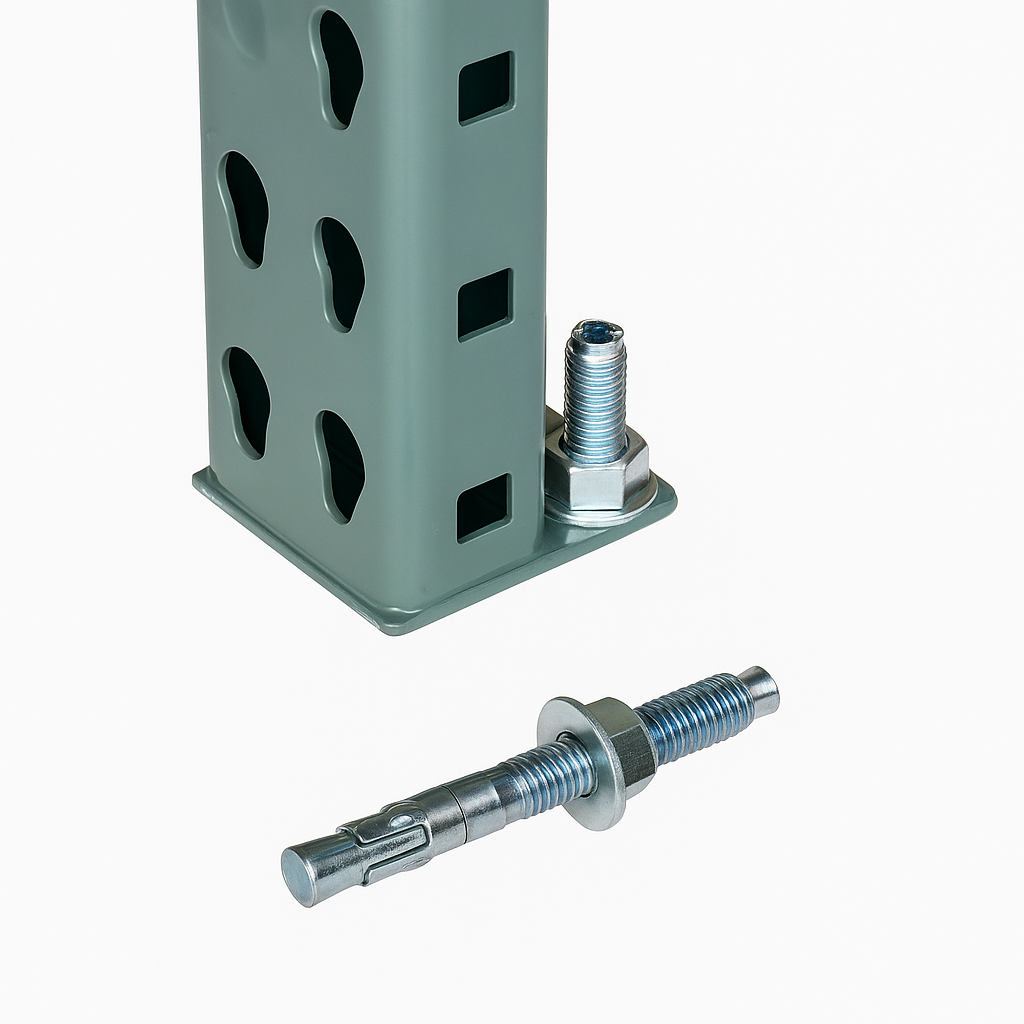

Wedge Anchor

One option for fastening pallet racks is the use of a concrete wedge anchor. Wedge anchors are available in a variety of diameters and lengths and are specifically designed for use in solid concrete. The diameter to be used in each application is dependent upon the hole size in the bottom plate of the upright. Most racking systems have holes that will accommodate a 1/2″ diameter wedge anchor. The 1/2″ anchor is available in 8 different lengths ranging from 2 3/4″ to 12″. The most commonly used lengths for fastening pallet racks are the 3 3/4″ and 4 1/4″

Anchor

Pallet Rack Shim

Pallet Rack Shim Plate

You can use the pallet rack shim plate to make sure your rack uprights are level. The shim plate easily nests under the footplate of the upright. The leveling shim plate comes unpainted. Shim plate can fit all pallet racks. You can use multiple shim plates to make a level and secure installation.
