Smart, Sloped, and Streamlined: Carton Flow Racks That Keep Inventory Moving
Carton flow racking systems offer a dynamic warehouse storage solution for fast-moving inventory — enabling first-in, first-out (FIFO) inventory rotation and improving picking efficiency. Perfect for e-commerce, retail, food, and pharmaceutical operations, these racks utilize gravity-fed lanes that keep cartons continuously available at the picking face. Discover why businesses choose carton flow racks to enhance warehouse throughput, minimize replenishment time, and save valuable space. Learn more about our pallet racking solutions for comprehensive storage options.
Why Choose Carton Flow Racking?
- ✔ High Pick Efficiency: Reduce picking errors and improve speed with ergonomic carton access at the pick face.
- ✔ FIFO Inventory Management: Automatic product rotation ensures older stock is always used first — critical for perishables and pharma.
- ✔ Space Optimization: Sloped lanes eliminate wasted shelf space and support higher-density warehouse storage.
Carton Flow Systems: Streamlined Efficiency
Carton flow systems are dynamic warehouse storage solutions designed for first-in, first-out (FIFO) inventory management. Utilizing gravity, these systems allow cartons to glide smoothly on inclined tracks — ensuring easy access and efficient stock rotation. Ideal for high-volume order fulfillment, carton flow racks significantly reduce picking times and optimize warehouse space, making them a cornerstone of modern warehouse racking and logistics.

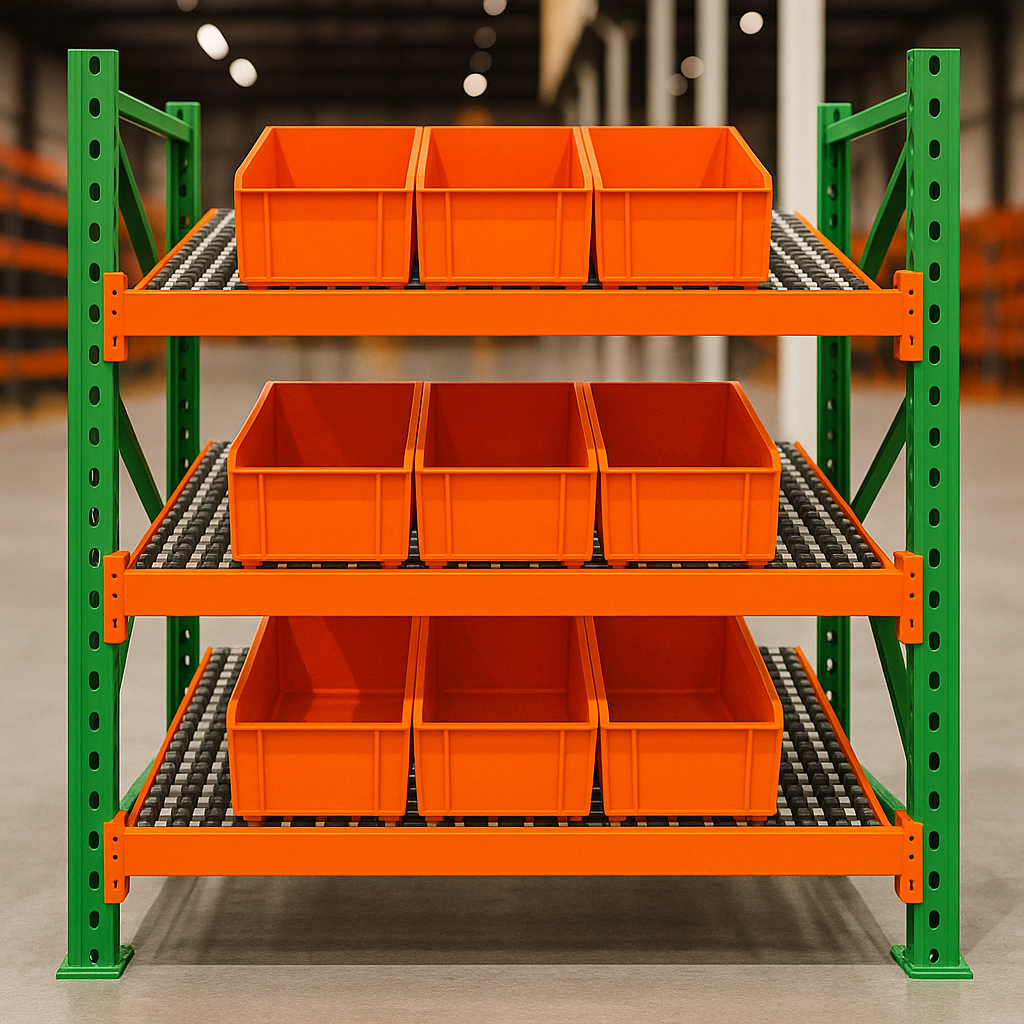

Key Advantages of Carton Flow Racking
- Improves picking accuracy and speed — crucial for fast-paced warehouse environments and e-commerce fulfillment.
- Optimizes warehouse space utilization by creating dense storage lanes and reducing aisle space requirements.
- Ensures automatic FIFO stock rotation — minimizing spoilage and product obsolescence.
- Reduces labor costs associated with travel time, searching, and manual stock rotation.
Applications of Carton Flow Racking
- 📦 Ideal for e-commerce fulfillment centers managing a high volume of SKUs and split-case picking.
- 📦 Suitable for distribution centers requiring efficient order processing and FIFO date-code compliance.

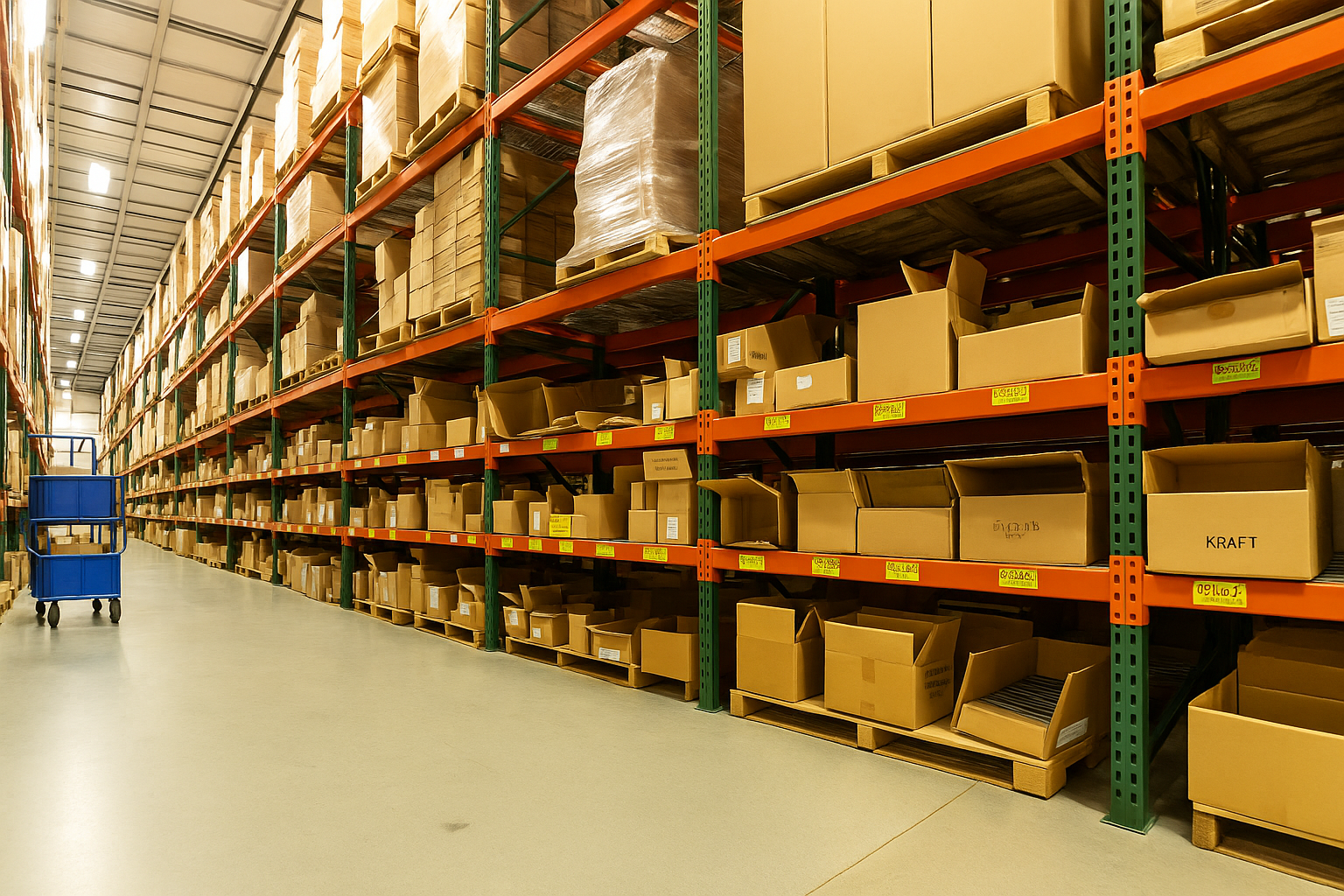

- 📦 Used in pharmaceutical warehouses for managing date-sensitive inventory with strict traceability.
- 📦 Applicable in retail backrooms and grocery warehouses for streamlined restocking processes.

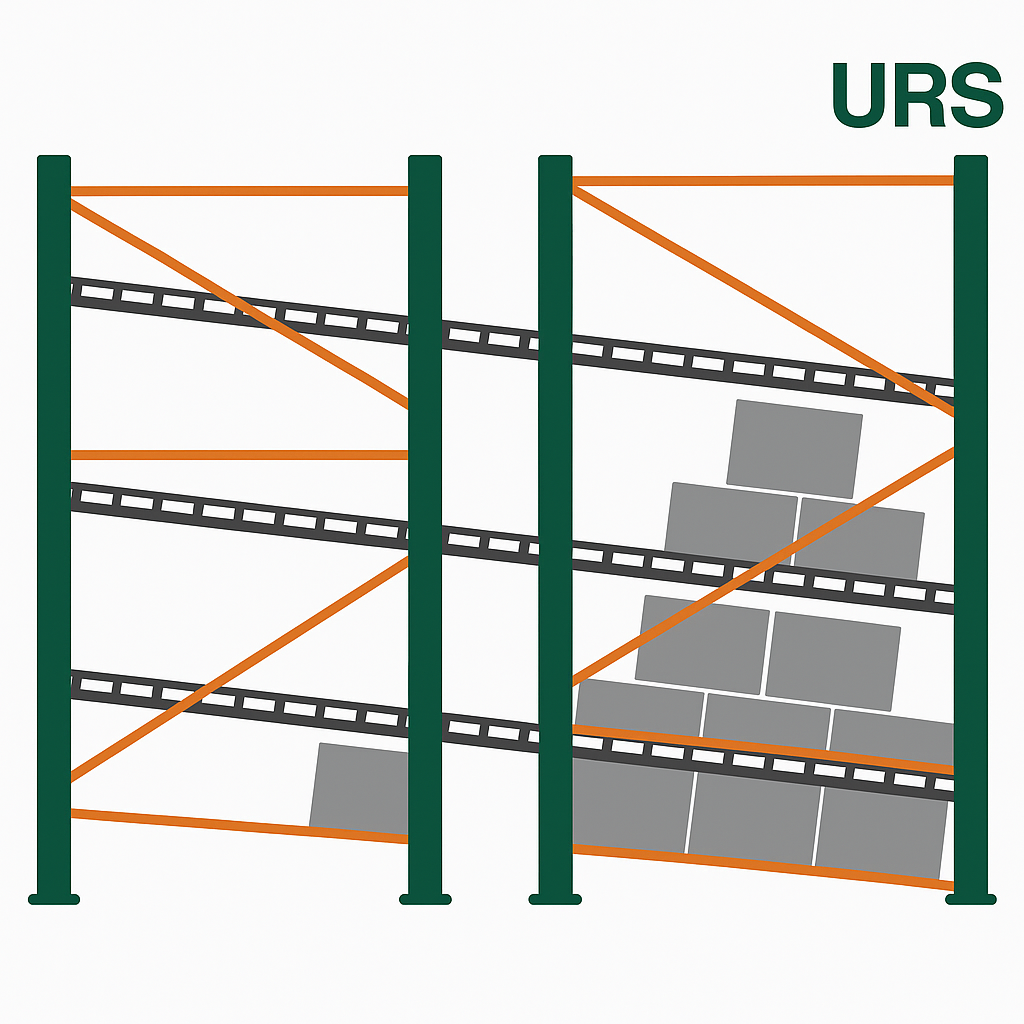

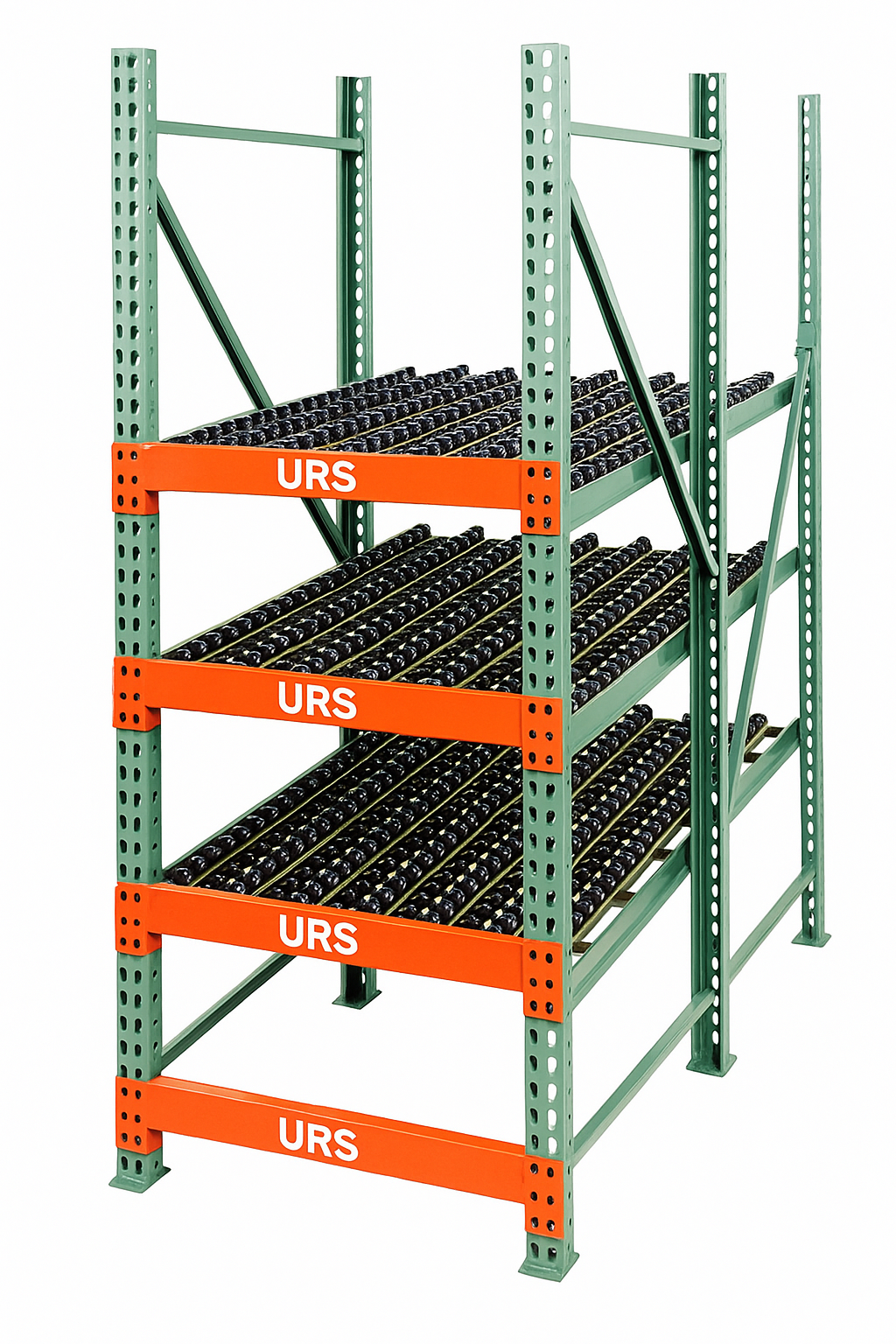

Design Insights for Carton Flow Systems
Effective carton flow system design considers carton dimensions, weight, and flow rate. The angle of the tracks is crucial for smooth movement — typically ranging from 3 to 5 degrees. Lane dividers ensure proper product separation, while different track options (rollers or wheel beds) are selected based on carton base type. Integration with pick modules and other material handling equipment further enhances overall efficiency.

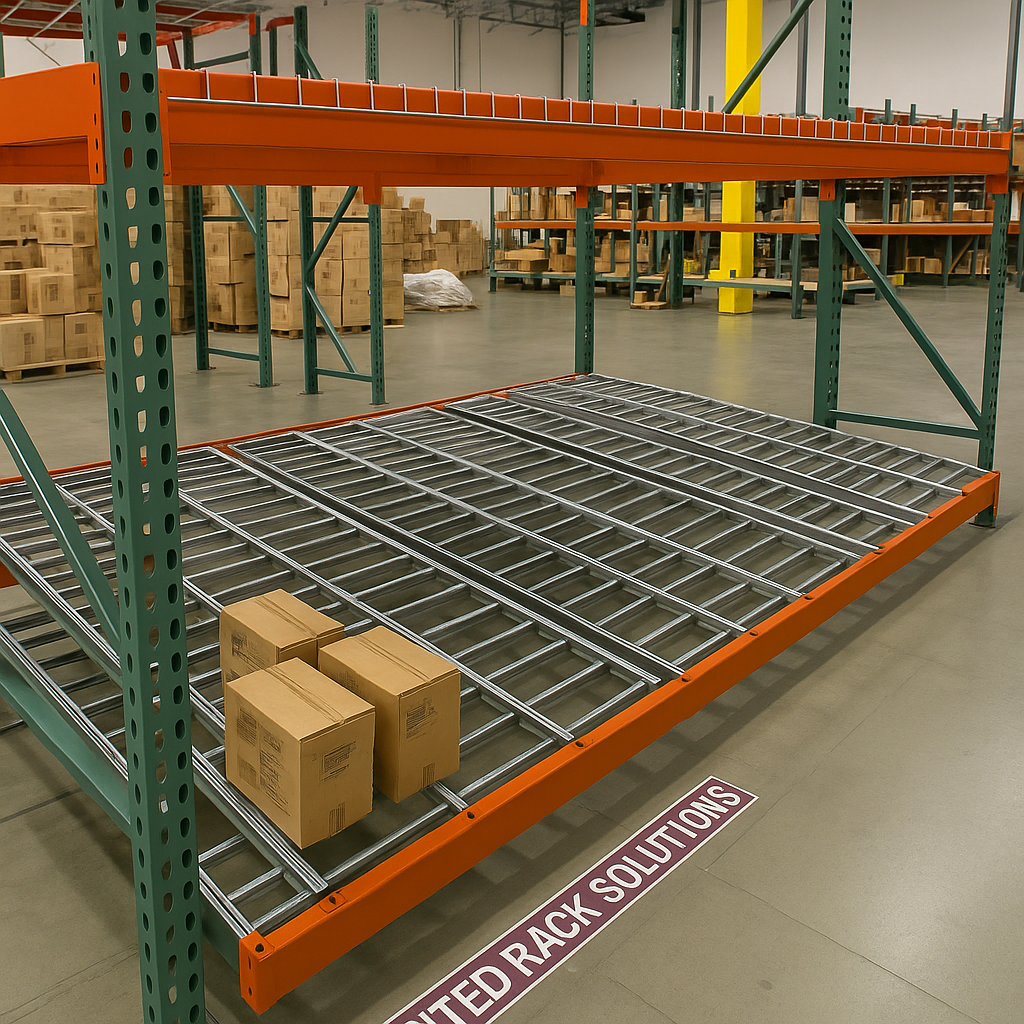

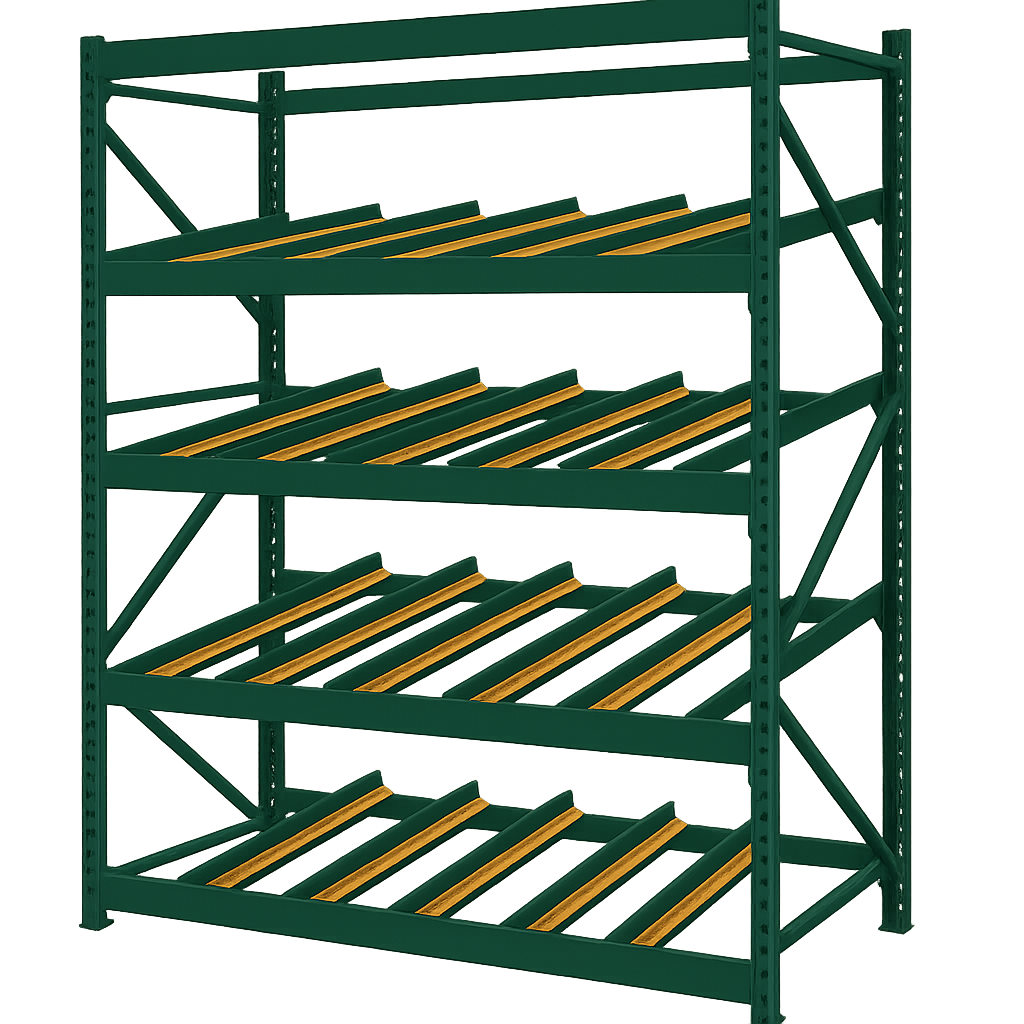

Understanding Carton Flow Rack Systems
Discover how carton flow rack systems utilize gravity and smart design for efficient, first-in, first-out (FIFO) inventory management — setting them apart from traditional static shelving in any warehouse storage environment.
Gravity-Powered Movement
Inclined shelves with rollers or wheels allow cartons to glide smoothly towards the picking face using gravity — no motors or labor required.

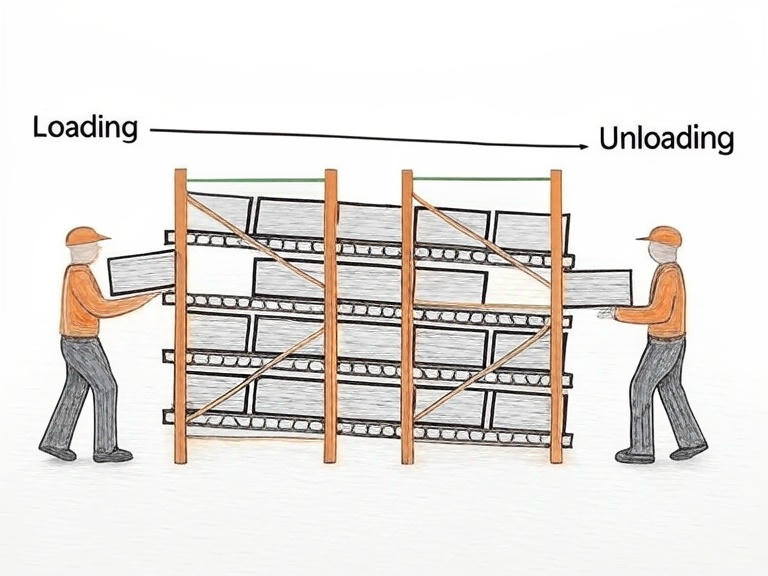

Rear Loading System
Cartons are loaded from the back of the carton flow rack, initiating the gravity-driven flow towards the front pick face.
Controlled Glide
Rollers and wheels minimize friction, ensuring a consistent and gentle movement of cartons down the lane without damage.
Automatic Replenishment
Picking a carton triggers the next one to automatically slide forward — keeping the picking face continuously stocked.
First-In, First-Out (FIFO)
Loading from the rear and picking from the front inherently ensures that the oldest stock is always used first — essential for perishables and pharma.
Reduced Spoilage & Obsolescence
FIFO minimizes the risk of products expiring or becoming outdated due to prolonged storage at the back of lanes.
Optimized Space
Compared to static shelving, carton flow racks allow for denser storage and reduced aisle space across your warehouse floor.
Enhanced Picking Efficiency
The continuous flow and readily available stock at the picking face significantly speed up order fulfillment — improving throughput by 30–50%.

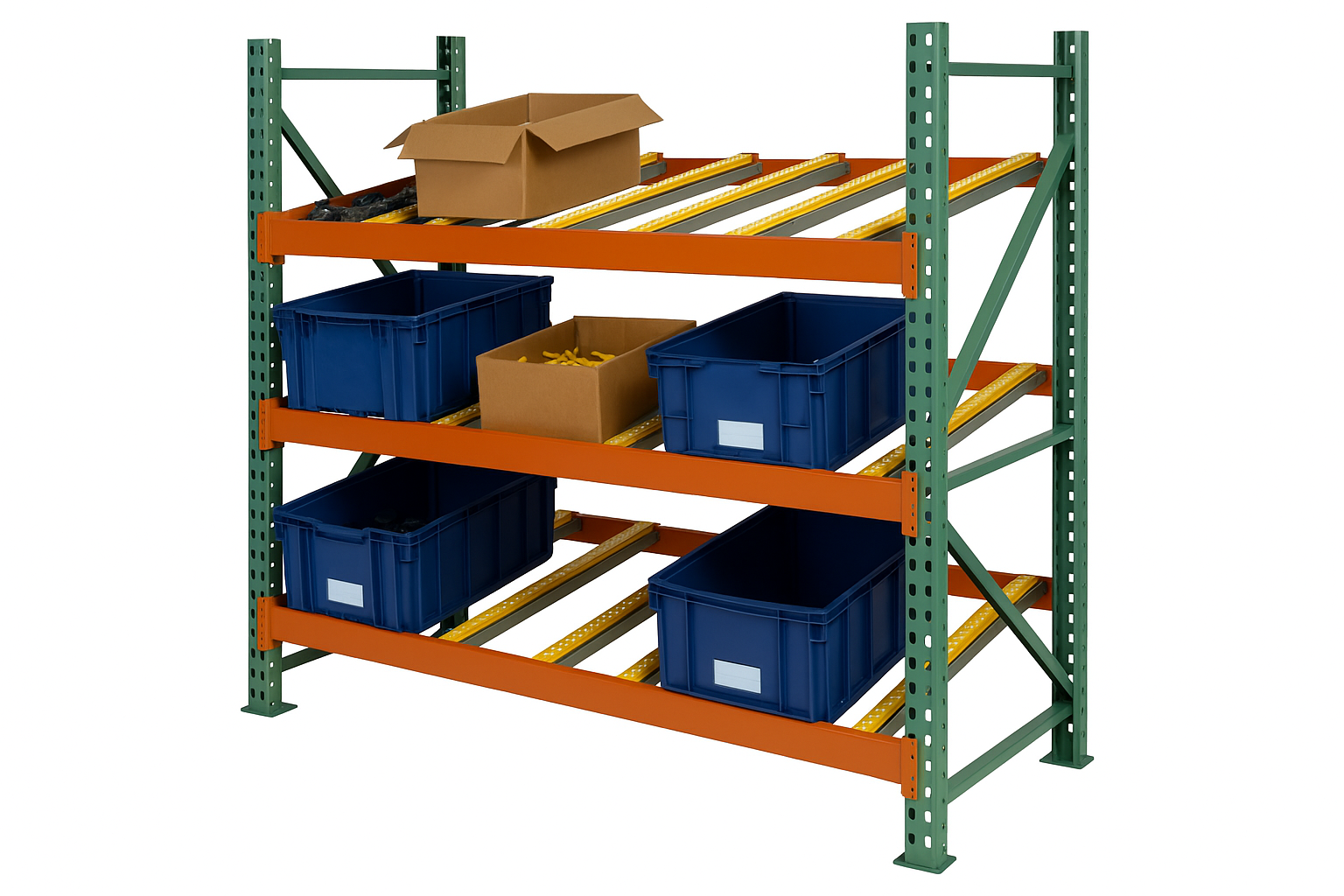

Maximize Efficiency with Advanced Carton Flow Rack Systems
Unlock the full potential of your warehouse with our state-of-the-art carton flow rack systems. Designed for dynamic inventory management, these solutions utilize gravity to ensure a smooth, first-in, first-out (FIFO) process — optimizing warehouse space and accelerating order fulfillment across PA, NY, and nationwide. Discover the key components, design considerations, and diverse applications that make carton flow racks a smart investment for modern logistics.

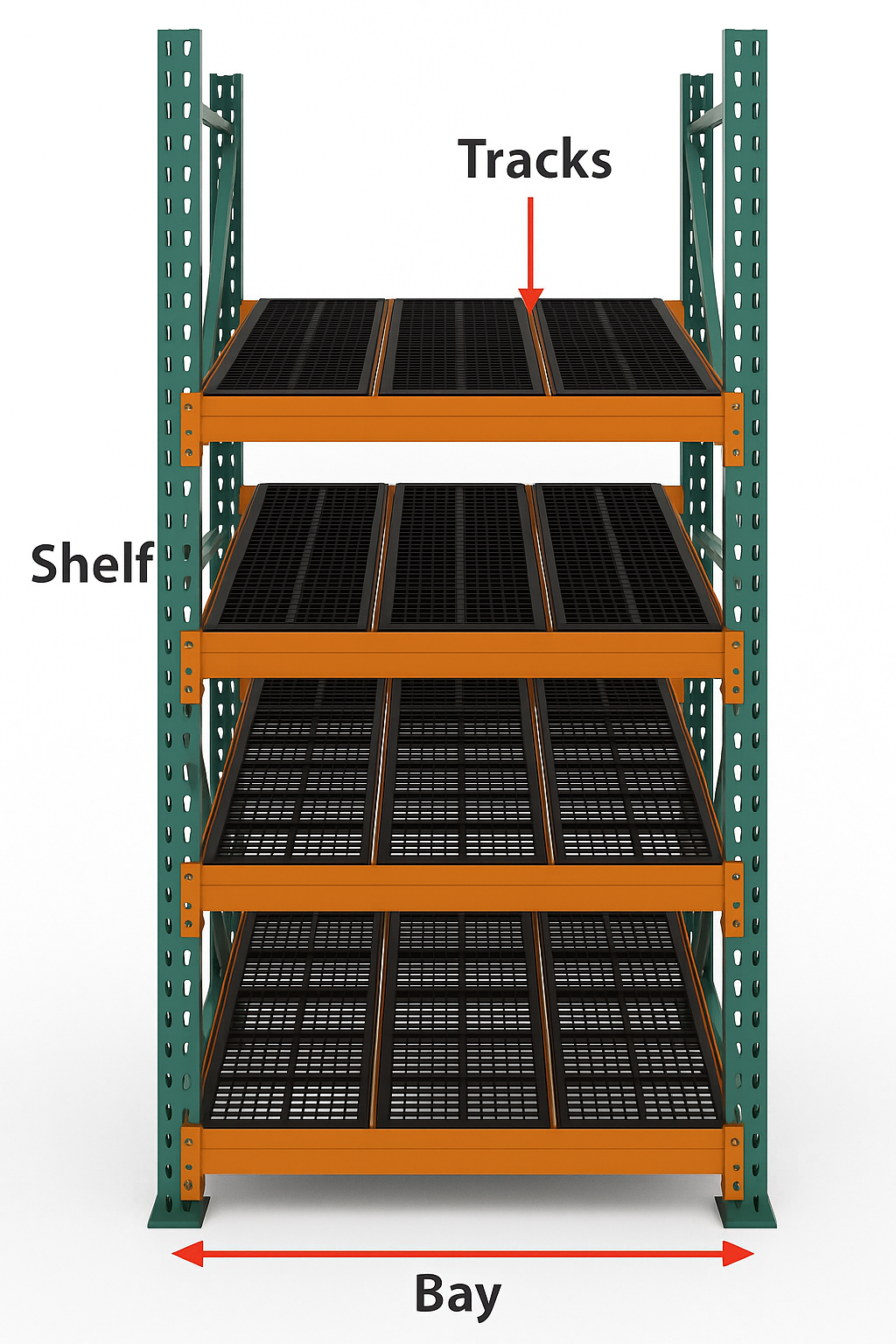

Key Components & Configuration Options for Optimal Flow
Our carton flow systems are built with precision-engineered components for reliable and efficient operation:
- Roller Tracks or Wheel Beds: Full roller lanes for uniform carton bases or divided wheel beds for varying sizes — optimizing carton glide speed.
- Adjustable Frames: Robust uprights with adjustable levels to accommodate different carton heights and maximize vertical warehouse space.
- Tilt Trays: Optional tilt trays at the picking end improve ergonomics and provide easier access to items within cartons.
- Lane Guides: Ensure smooth and straight carton flow — preventing jams and maintaining lane integrity for consistent throughput.
- Load/Unload Ends: Specifically designed entry and exit points for safe and efficient rear loading and front picking.
- Entry Guides: Facilitate proper carton alignment during loading — minimizing damage and ensuring smooth entry into the flow lanes.

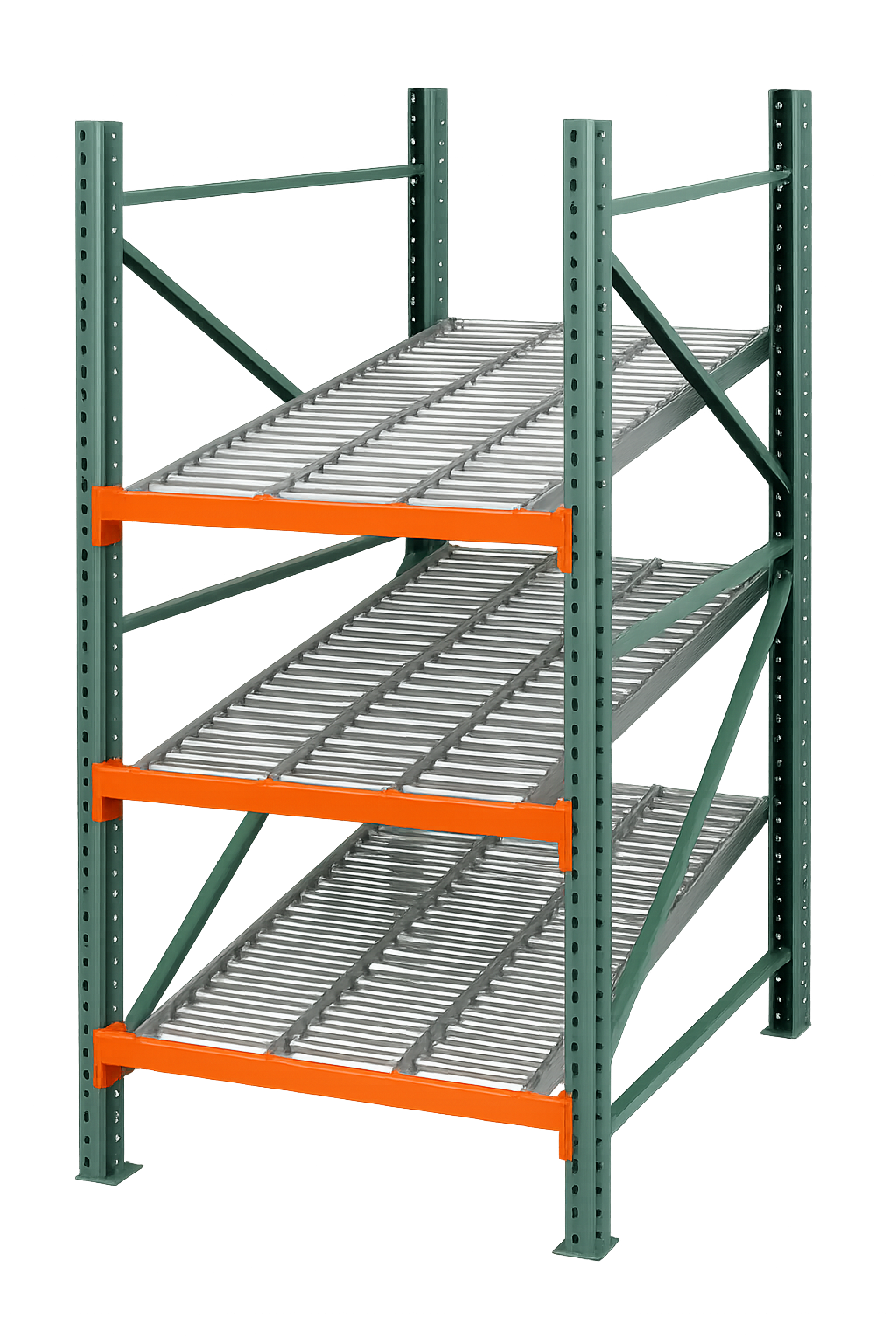

Critical Design & Installation Considerations
Proper design and installation are paramount for the efficiency and longevity of your carton flow system:
- Slope Angles and Shelf Depth: Determining the optimal incline (typically 3–5°) and shelf depth based on carton size, weight, and desired flow speed.
- Weight Capacity Planning: Engineering the system to handle the maximum anticipated load per lane — ensuring safety and preventing structural failure.
- Compatibility with Pallet Racks: Seamless integration with existing pallet racking systems to create hybrid storage solutions for diverse inventory.
- Seismic Considerations: Designing and anchoring systems to withstand seismic activity in earthquake-prone regions for workplace safety.
- Ergonomic Picking Heights: Configuring shelf levels to optimize picking comfort and efficiency — reducing strain on warehouse personnel.
Versatile Industry Applications
Carton flow rack systems provide significant operational advantages across a wide range of industries:
- Warehousing & Logistics: Optimizing storage density and pick rates in distribution centers and general warehouse racking environments.
- E-commerce & Retail Fulfillment: Accelerating order processing and reducing picking errors for online and brick-and-mortar retailers.
- Food & Beverage: Facilitating FIFO for perishable goods — minimizing waste and ensuring product freshness throughout the supply chain.
- Pharmaceuticals: Maintaining strict inventory control and traceability for sensitive and date-coded medications.
- Automotive Parts: Efficiently storing and retrieving a high volume of smaller parts — improving organization in automotive warehouses.
- Manufacturing: Streamlining the flow of components and finished goods within production facilities — supporting lean manufacturing principles.
Quantifying Efficiency & Return on Investment with Carton Flow Racks
Investing in carton flow systems translates to significant improvements in operational efficiency and a strong return on investment. Here are the key metrics:
Picking Speed Improvement
Carton flow racks significantly reduce picking time by presenting items directly at the picking face — eliminating search times and travel within aisles.
Labor Cost Savings
Streamlined flow and reduced picking distances lead to lower labor requirements for order fulfillment and restocking processes.
Reduced Restocking Times
Replenishing stock from the rear without interrupting picking operations minimizes downtime and accelerates the restocking process.
Aisle Congestion Reduction
Compact design and dedicated flow lanes decrease aisle congestion — improving forklift maneuverability and overall warehouse safety.
Impact on Picking Time
(Lower bar = faster picking time)
Return on Investment Timeline (Typical)
(Carton flow racks deliver faster, more direct ROI)
These metrics highlight the tangible benefits of carton flow racking — leading to significant cost savings and a rapid return on investment through enhanced operational efficiency.
Exploring Carton Flow Rack Efficiency, Safety, and Customization
Learn how carton flow rack systems compare to other picking methods, understand crucial safety and maintenance practices, and discover customization options to optimize your warehouse.
Carton Flow vs. Static Shelving
Understand the key differences between carton flow racks and traditional static shelving. Gravity-fed systems enhance picking efficiency and optimize warehouse space compared to fixed shelves — delivering 30–50% faster pick rates.
Carton Flow vs. Pallet Flow
Carton flow handles lightweight boxes and bins using smaller lanes and wheel beds, while pallet flow racks handle full palletized loads. Both use FIFO gravity — the right choice depends on load size and handling requirements.
Carton Flow vs. Push-Back Racks
Compare FIFO-based carton flow systems with LIFO push-back racks for carton storage. Evaluate which system offers better throughput and inventory date-code control for your specific operation.
Carton Flow Rack Safety Practices
Follow essential safety guidelines — weight limits, proper loading, and item containment — to prevent accidents and maintain a secure warehouse environment. Annual rack inspection ensures OSHA compliance.
Load Handling & Maintenance
Ensure system longevity by inspecting rollers, aligning tracks, and cleaning lanes regularly. Prevent downtime with proactive maintenance practices for your carton flow racking system.
Customization: Dividers, Labels & Lane Stops
- Separate SKUs clearly using vertical dividers
- Use label holders for faster identification at the pick face
- Install lane stops to prevent product overrun at the front
Flexibility: Width, Depth & Scalability
- Adjust lane depth and width for diverse carton sizes
- Add modular lanes as your warehouse storage needs grow
- Compatible with standard pallet rack frames for hybrid systems
Frequently Asked Questions – Carton Flow Racking
🔄 What is the difference between a Carton Flow Rack and a Pallet Flow Rack?
Carton flow racks handle lighter items like boxes or bins using smaller lanes and wheel beds, while pallet flow racks are built for heavy, palletized goods and use full-width rollers. Both operate using gravity but serve different load types and storage purposes.
🧲 Is a Gravity Flow Rack the same as a Carton Flow Rack?
Yes, a carton flow rack is a type of gravity flow system designed for smaller, hand-picked items. The term "gravity flow rack" is broader and also includes pallet flow racks for full pallet loads.
📦 What is a carton flow rack system?
A carton flow rack uses gravity to move cartons from a rear loading point to the pick face using rollers or wheel beds — allowing automatic FIFO rotation and significantly faster order picking than static shelving.
⚙️ How does a carton flow rack work?
Cartons are placed on inclined tracks at the rear, and gravity moves them forward to the pick face. As one carton is removed by a picker, the next automatically slides into position — maintaining a continuously stocked pick face.
✅ What are the benefits of carton flow racks?
They improve picking speed by 30–50%, reduce labor costs by 15–30%, maximize warehouse space, and support FIFO inventory — ideal for high-volume SKU and split-case operations in e-commerce, food, and pharma environments.
🏬 Where are carton flow racks used?
They're used in e-commerce warehouses, retail fulfillment centers, food and beverage storage, pharmaceutical distribution, automotive parts warehouses, and manufacturing facilities across PA, NY, and nationwide.
🔩 Are carton flow racks compatible with pallet racks?
Yes. Most carton flow beds can be installed within standard pallet rack frames — creating hybrid storage solutions that serve both carton picking and full pallet storage in the same system.
🛠️ Can the system be customized?
Absolutely. You can customize lane widths, use dividers, add tilt trays, label holders, and lane stops to meet your exact picking and warehouse storage needs. United Rack Solutions offers full custom configuration at our Sinking Spring, PA facility.
❄️ Are carton flow racks suitable for cold storage?
Yes. Many carton flow rack systems are manufactured with galvanized or corrosion-resistant materials — making them ideal for cold storage, refrigerated warehouses, and freezer environments where FIFO rotation is critical.
Streamline Your Picking with Efficient Carton Flow Racks
Talk to our specialists about optimizing your warehouse layout with gravity-fed carton flow solutions for faster order fulfillment and improved space utilization — serving PA, NY, and nationwide.
